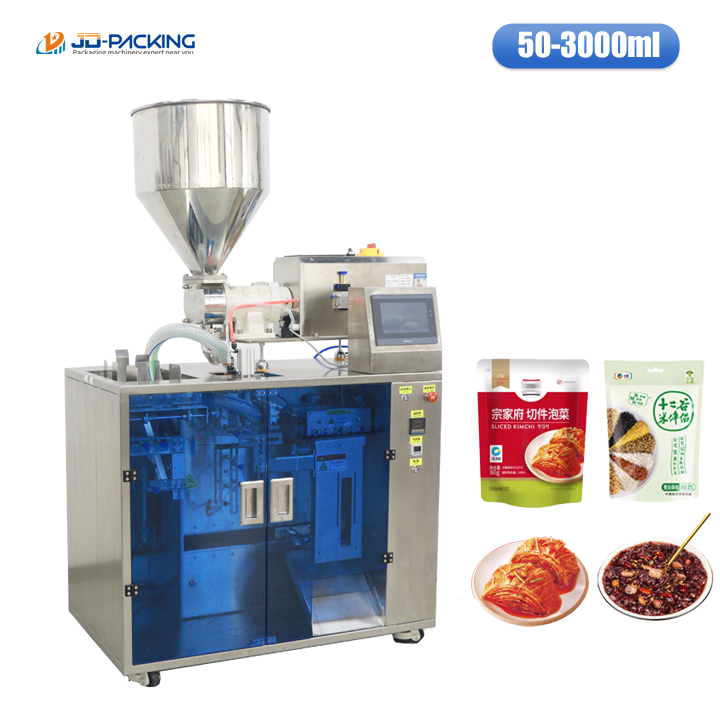

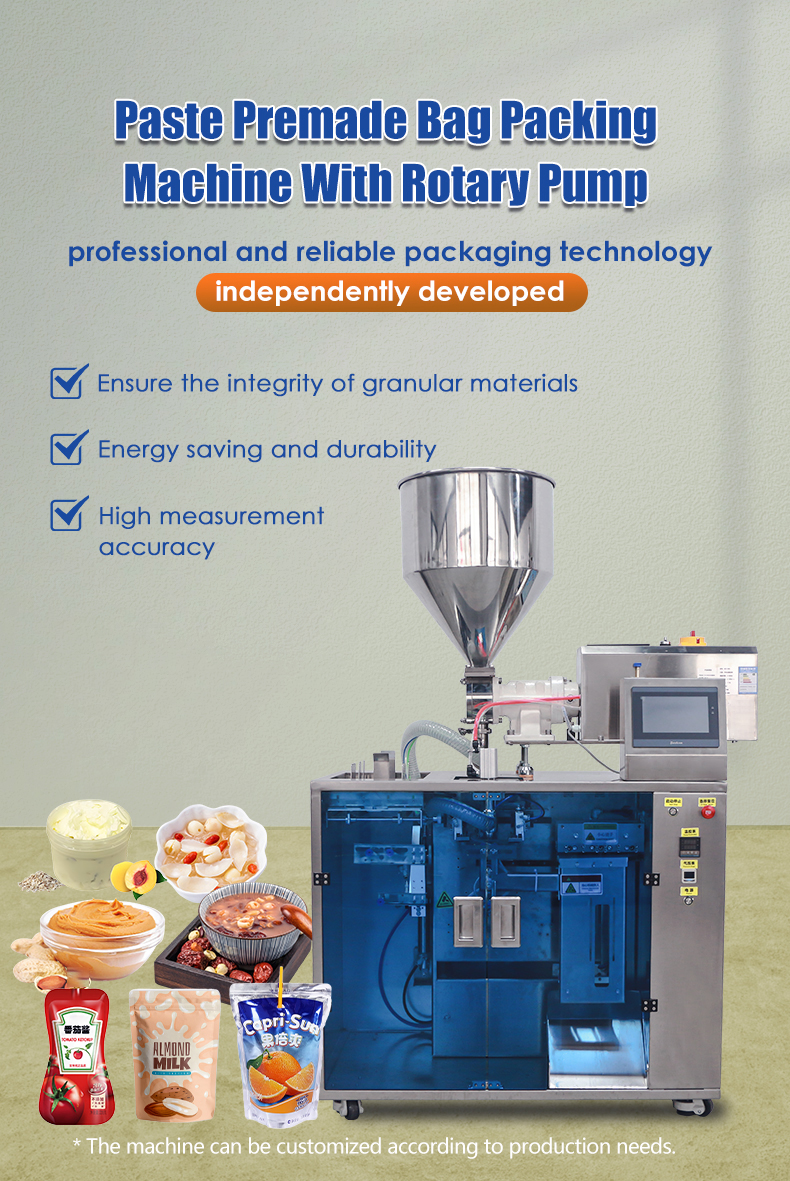

- Paste Premade Bag Packing Machine With Rotary Pump
- Item No.: GTX-1800
- Email Us
Scope of application:
Rotary pump packaging machine is a fluid filling equipment based on rotary pump technology, suitable for high viscosity and particle containing materials. The core component is the rotary pump, which achieves stable material transportation and precise measurement through the rotational motion of the rotor. It is widely used in industries such as food, daily chemical, pharmaceutical, and chemical.
Technical parameters:
| Weight range | Precision | Bag Size |
| 50-3000ml | ±5ml | 10-20cm(w) / 12-30cm(l) |
| Machine Weight | Speed | Machine Size |
| 150kg | 10-15(bag/min) | 97*57*180cm(l*w*h) |

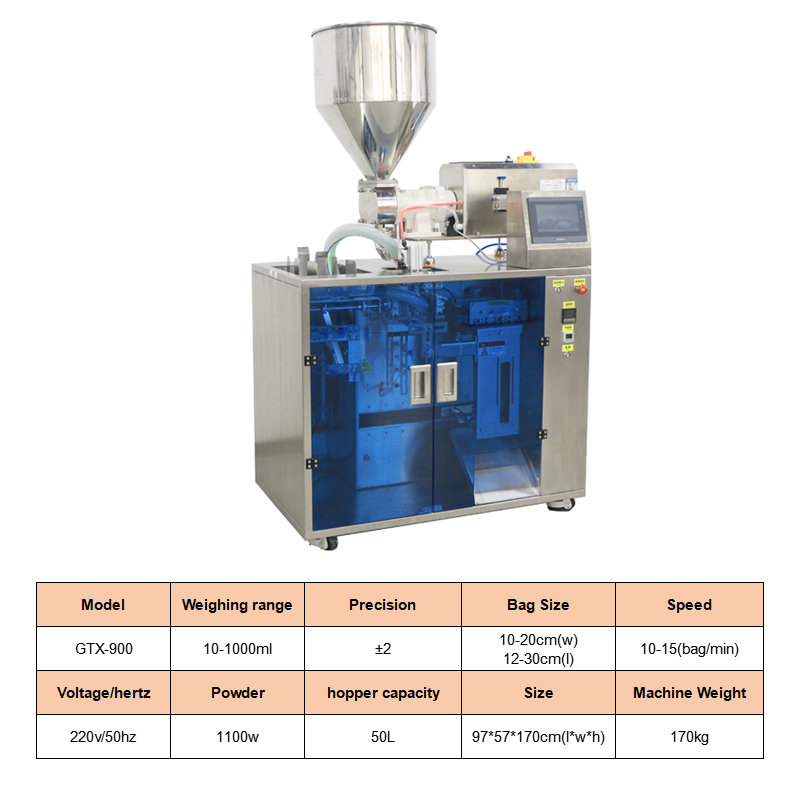

GTX-900
GTX-1800- Description
- Features
- Video

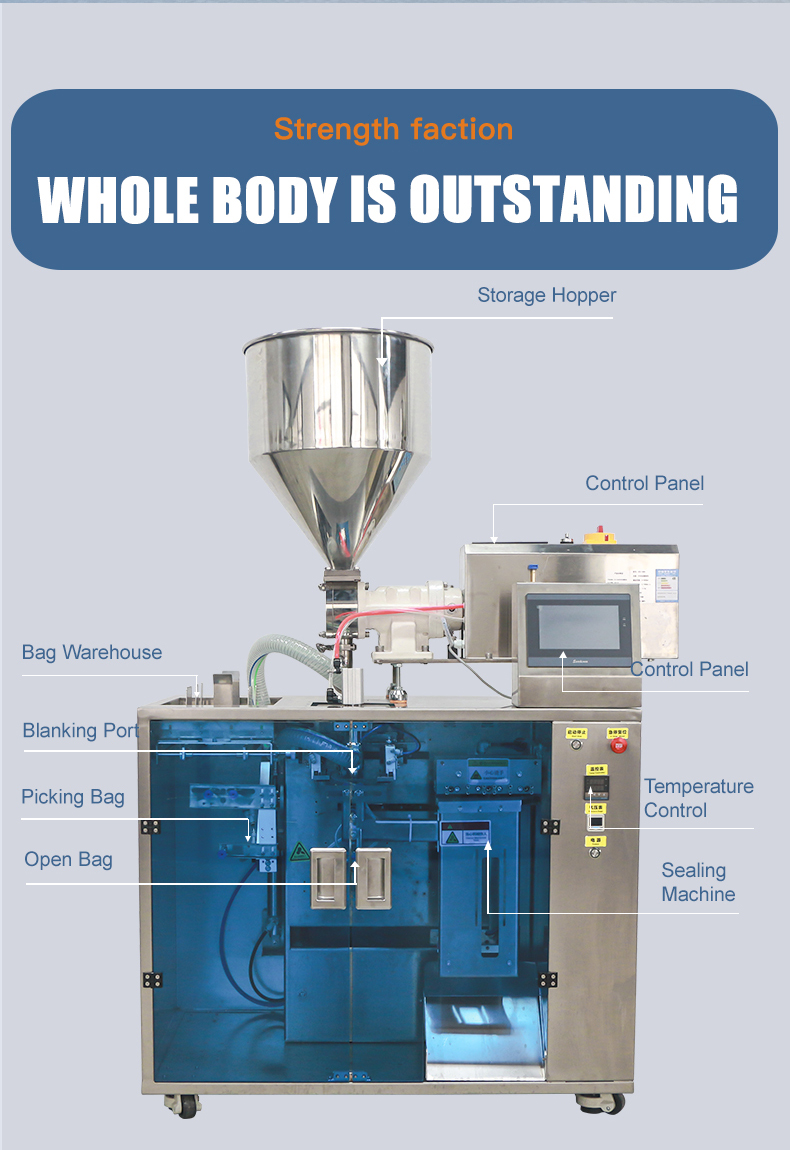

product overview
Rotary pump packaging machine is a paste liquid filling equipment based on rotary pump technology, suitable for high viscosity and granular paste materials. The core component is the rotary pump, which achieves stable material transportation and precise measurement through the rotational motion of the rotor. It is widely used in industries such as food, daily chemical, pharmaceutical, and chemical.
Applicable products
1. The paste liquid material contains particles, and we do not want the particles to be crushed during the packaging process,For example, Eight Treasure Porridge, Kimchi, Hotpot condiment, drinks with fruit pulp, etc.
2. High viscosity materials, such as minced meat, honey, syrup, etc

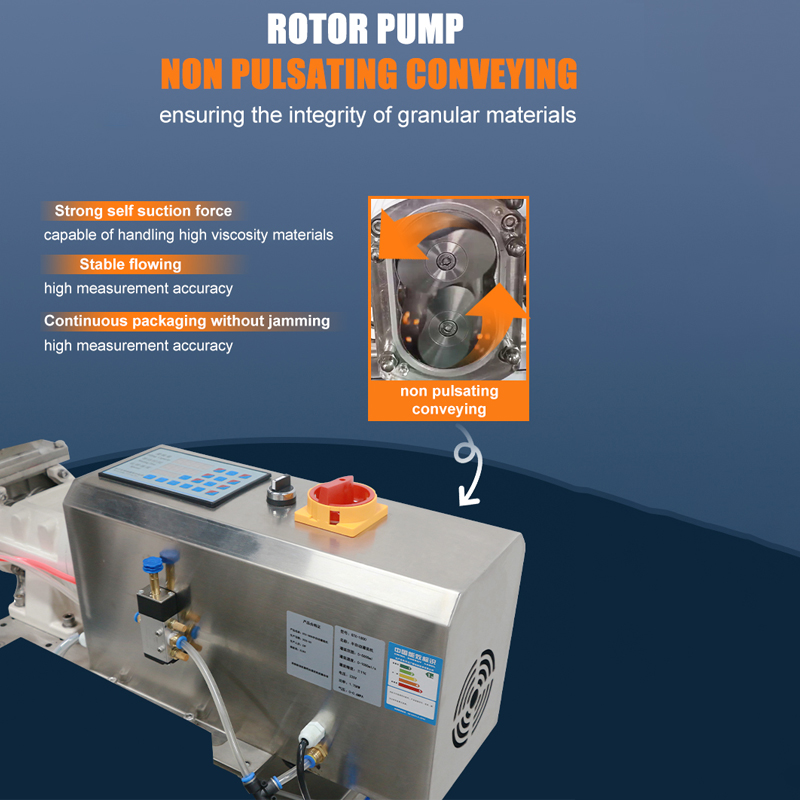

Workflow:
1. Material suction: The rotor rotates to create negative pressure, which sucks the material into the pump chamber.
2. Conveyor: The rotor continues to rotate, pushing the material towards the outlet.
3. Discharge: The material is extruded to the blanking port, completing the filling process

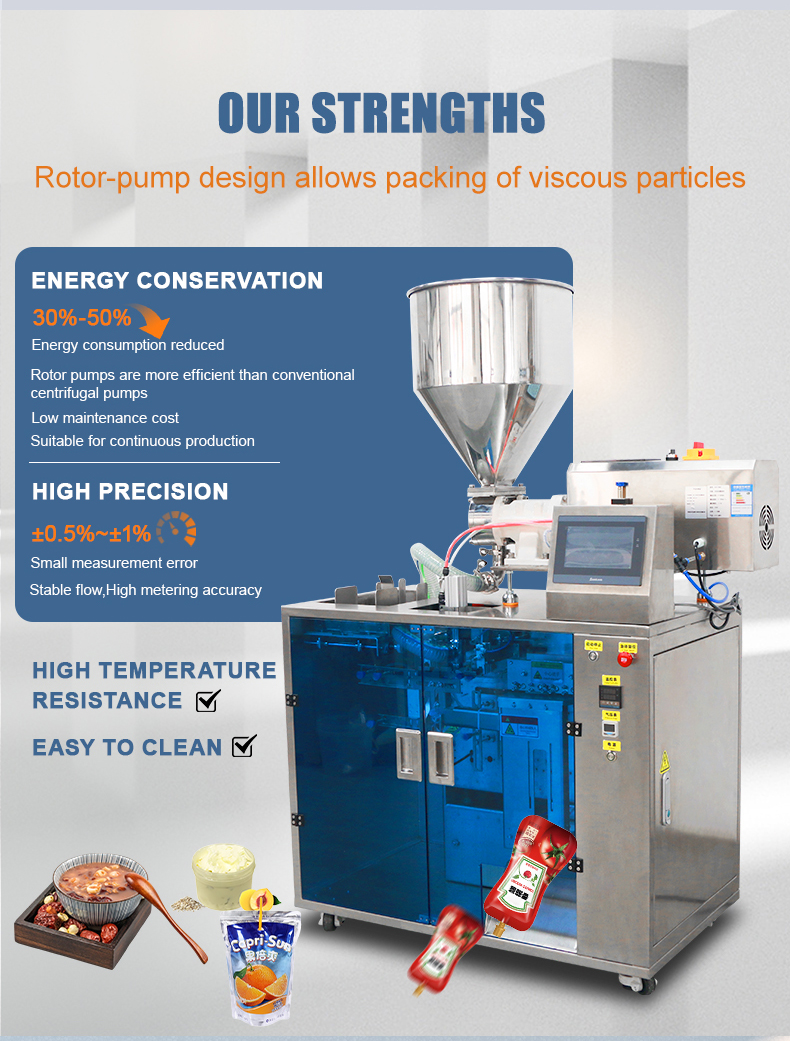

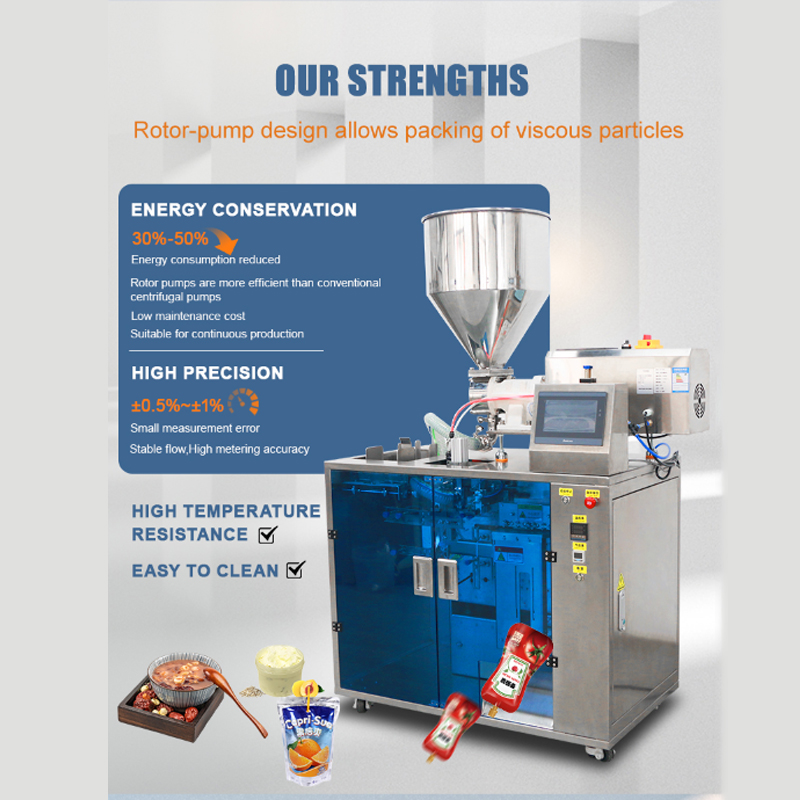

Features and advantages
1. High viscosity materials: Strong self suction, capable of handling high viscosity materials and not easily clogged
2. Gentle transportation: low shear force, suitable for fluids with particles and fibers (such as jam with particles, chili oil, etc.)
3. High precision: The measurement error can be controlled within ± 0.5%~± 1%, the flow rate is stable, and the measurement accuracy is high
4. High temperature resistance: can be equipped with a temperature control system, used for special materials such as hot melt adhesive and chocolate
5. Easy to clean: matched with water cleaning function
6. Energy saving and durability: Rotary pumps have higher efficiency than traditional centrifugal pumps, reducing energy consumption by 30% -50%, lower maintenance costs, and are suitable for continuous production
7. Low noise: The equipment operates with low noise and high stability
