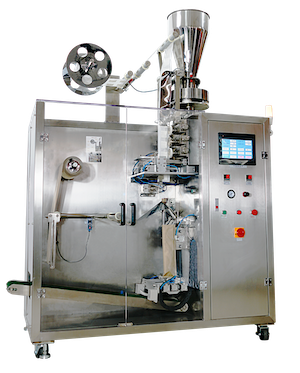

- Model 188 Hanging ear coffee inner and outer bag packing machine
- Item No.: JD-188
- Email Us
Technical Parameters
Measuring Scope：5 - 10 g（ 15 ~ 33 ml ）
Inner bag size：L ：70 - 74 mm W ：90 mm
Outer bag size： L ：120 mm W ：100 mm
Packing Speed：20-35 bags/min
Dimension ( L * W * H )：1720 * 900 * 2270 mm
Weight：660 kg
Total Power：AC220V / 50Hz / 3.7kw
Gas source：≥0.6m³/ min
Optional Equipments
Coding machine
Tap
- Description
- Features
- Company Show
- Installation
- Operation
- After Sales
- Function Explanation
Characteristic
1、The machine is suitable for ground coffee and small particulate material.
2、Adopt the special drip filter bag with three-sides sealing, which can be directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.
3、The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.
4、The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced ultrasonic sealing, perfect sealing and beautiful bag type.
5、Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.
Sealing Type Three sides sealing
